Portable Gasoline
QST8500CLE3
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
Technical Specifications
- Rated Frequency「Hz」 : 50 – 60
- Rated Power「KVA」 :5.8 – 6.0
- Max Power「KVA」 :6.0 – 6.5
- Rated Voltage「V」 : 110-240
- DC Output :12V/8.3A
- phase : Three phase
- Engine type :GX420
- Starting System : Electric starter
- Fuel Tank capacity「L」 :25
- Noise ( at 7M)「dB」 : 72
- Dry Weight 「kg」 :93
- Diemension 「mm」 : 815×540×575
QST7500CLE3
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
Technical Specifications
- Rated Frequency「Hz」 : 50 – 60
- Rated Power「KVA」 :5.0 5.5
- Max Power「KVA」 :5.5 6.0
- Rated Voltage「V」 : 110-240
- DC Output :12V/8.3A
- phase : Three phase
- Engine type :GX390
- Starting System : Electric starter
- Fuel Tank capacity「L」 :25
- Noise ( at 7M)「dB」 : 72
- Dry Weight 「kg」 :93
- Diemension 「mm」 : 815×540×575
QST7500CLE
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
Technical Specifications
- Rated Frequency「Hz」 : 50 – 60
- Rated Power「KVA」 :5.0 5.5
- Max Power「KVA」 :5.5 6.0
- Rated Voltage「V」 : 110-240
- DC Output :12V/8.3A
- phase : Single phase
- Engine type :GX390
- Starting System : Electric starter
- Fuel Tank capacity「L」 :25
- Noise ( at 7M)「dB」 : 72
- Dry Weight 「kg」 :93
- Diemension 「mm」 : 815×540×575
QST8500CLE
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
Technical Specifications
- Rated Frequency「Hz」 : 50 – 60
- Rated Power「KVA」 :5.8 – 6.0
- Max Power「KVA」 :6.0 – 6.5
- Rated Voltage「V」 : 110-240
- DC Output :12V/8.3A
- phase : Single phase
- Engine type :GX420
- Starting System : Electric starter
- Fuel Tank capacity「L」 :25
- Noise ( at 7M)「dB」 : 72
- Dry Weight 「kg」 :93
- Diemension 「mm」 : 815×540×575
QST950
GASOLINE GENERATOR / Compact Structure, Low Noise & Pollution
Technical Specifications
- Rated Frequency「Hz」 : 50 – 60
- Rated Power「W」 :700-750
- Max Power「W」 :750-800
- Rated Voltage「V」 : 110-230
- Rated Current(A) :5.5 13.2/6.8
- phase : Single phase
- Engine type :IE45 (2- Stroke)
- Starting System : Recoil starter
- Noise ( at 7M)「dB」 : 60/63
- Dry Weight 「kg」 :20
- Diemension 「mm」 : 390×320×330
QST3500ME
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
Technical Specifications
- Rated Frequency「Hz」 : 50 – 60
- Rated Power「KVA」 :2.0 – 2.3
- Max Power「KVA」 :2.2-2.5
- Rated Voltage「V」 : 110-240
- DC Output :12V/8.3A
- phase : Single phase
- Engine type :GX160
- Starting System : Electric starter
- Fuel Tank capacity「L」 :15
- Noise ( at 7M)「dB」 : 68
- Dry Weight 「kg」 :42
- Diemension 「mm」 : 605×435×460
QST3500M
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
Technical Specifications
- Rated Frequency「Hz」 : 50 – 60
- Rated Power「KVA」 :2.0 – 2.3
- Max Power「KVA」 :2.2-2.5
- Rated Voltage「V」 : 110-240
- DC Output :12V/8.3A
- phase : Single phase
- Engine type :GX160
- Starting System : Recoil Start
- Fuel Tank capacity「L」 :15
- Noise ( at 7M)「dB」 : 68
- Dry Weight 「kg」 :42
- Diemension 「mm」 : 605×435×460
QST1500CL
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
Technical Specifications
- Rated Frequency「Hz」 : 50 – 60
- Rated Power「KVA」 :1.0 – 1.1
- Max Power「KVA」 :1.1 – 1.2
- Rated Voltage「V」 : 110-240
- DC Output :12V/8.3A
- phase : Single phase
- Engine type :154F
- Starting System : Recoil Starter
- Fuel Tank capacity「L」 :8
- Noise ( at 7M)「dB」 : 68
- Dry Weight 「kg」 :24
- Diemension 「mm」 : 460×370×390
QST7500TE - SINCRO ALTERNATOR
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
Technical Specifications
- kVA : 7.0 – 9.0 (50Hz-3000rpm) – (60Hz-3600rpm)
- Stator :Ω 1,3 (230V/400V-50Hz-3000rpm)
- Auxiliary :Ω 2,3 (230V/400V-50Hz-3000rpm)
- Rotor :Ω 26 3 (230V/400V-50Hz-3000rpm)
- Phase :Three Phase
- Noise ( at 7M)「dB」 : 68
- Engine Type :GX390
- Starting System : Recoil Start & Ele. Start
- Fuel Tank capacity「L」 :6.5

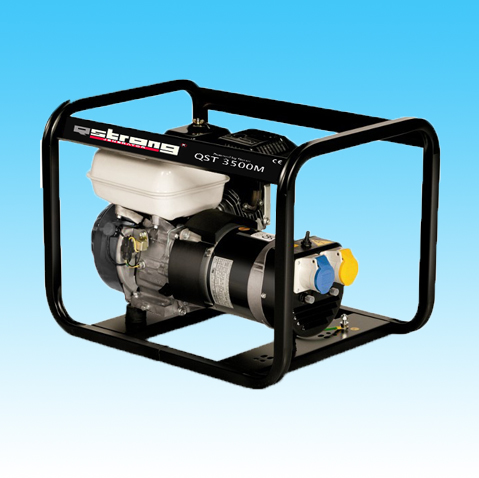

QST3500M - SINCRO ALTERNATOR
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
Technical Specifications
- Rated Frequency「Hz」 : 50 – 60
- Rated Power「KVA」 :2.2 – 2.7 ( 50 Hz -3000 r.p.m. – 230V ) – (60 Hz – 3600 r.p.m. – 240V)
- Stator :Ω 2.4 – 1.8 ( 50 Hz -3000 r.p.m. – 230V ) – (60 Hz – 3600 r.p.m. – 240V)
- Auxiliary : Ω 5.1 – 4 ( 50 Hz -3000 r.p.m. – 230V ) – (60 Hz – 3600 r.p.m. – 240V)
- Batt. Charger :Ω 0.17 – 0.14 ( 50 Hz -3000 r.p.m. – 230V ) – (60 Hz – 3600 r.p.m. – 240V)
- Rotor : Ω 5.2 – 5.2 ( 50 Hz -3000 r.p.m. – 230V ) – (60 Hz – 3600 r.p.m. – 240V)
- Capacitor :μF 16 – 16 ( 50 Hz -3000 r.p.m. – 230V ) – (60 Hz – 3600 r.p.m. – 240V)
- Rated Voltage「V」 : 110 – 240
- Phase :Single Phase
- Noise ( at 7M)「dB」 : 68
- Engine Type :GX200
- Starting System : Recoil Start
- Fuel Tank capacity「L」 :3.6
- Noise ( at 7M)「dB」 : 68
- Dry Weight 「kg」 :42
- Diemension 「mm」 : 590X430X445
Technical Specifications
- kVA : 7 – 8 (115/230V-50Hz-3000rpm) – (120/240V-60Hz-3600rpm)
- Stator :Ω 0,62-0,46 (115/230V-50Hz-3000rpm) – (120/240V-60Hz-3600rpm)
- Auxiliary :Ω 1,73 – 1,28 (115/230V-50Hz-3000rpm) – (120/240V-60Hz-3600rpm)
- Batt. charger : Ω 0,12 – 0,10 (115/230V-50Hz-3000rpm) – (120/240V-60Hz-3600rpm)
- Rotor :Ω 2,85 – 2,85 (115/230V-50Hz-3000rpm) – (120/240V-60Hz-3600rpm)
- Capacitor : μF 40 – 40 (115/230V-50Hz-3000rpm) – (120/240V-60Hz-3600rpm)
- Phase :Single Phase
- Noise ( at 7M)「dB」 : 68
- Engine Type :GX390
- Starting System : Recoil Start & Ele. Start
- Fuel Tank capacity「L」 :6.5
- Noise ( at 7M)「dB」 : 72
- Dry Weight 「kg」 :45
- Diemension 「mm」 : 590X430X445
QST7500ME-SINCRO ALTERNATOR
GASOLINE GENERATOR / STRUCTURE TYPE : OPEN FRAME
